CCD Detection System for Cutting and Stacking Machine
Overview

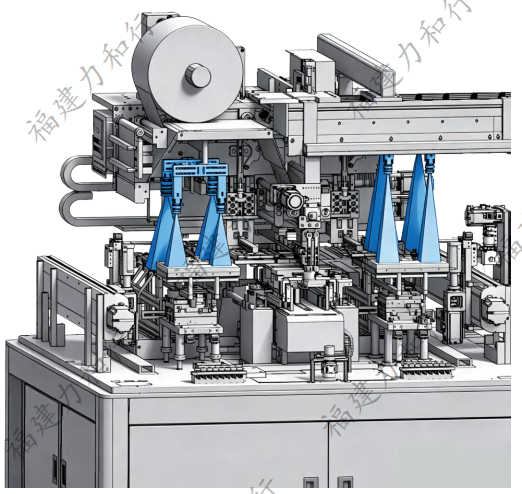

Appearance CCD detection system for cutting and stacking machine uses CCD to take real-time photos of electrode surface to enable CCD inspection of positive and negative unwindings, tab die cutting, and post-cutting processes, thereby achieving automated product inspection.
Get a Quote →Details & Specs
Appearance CCD detection system for cutting and stacking machine uses CCD to take real-time photos of electrode surface to enable CCD inspection of positive and negative unwindings, tab die cutting, and post-cutting processes, thereby achieving automated product inspection.
Detection Content
①Electrode Dimension Detection
②Electrode Alignment Detection
③ Electrode Appearance Defect Detection
④Stack Alignment Detection
⑤Stack Positioning
Technical Parameter
| Electrode width | 590mm |
| Coating process | Continuous coating |
| Camera | 200W,500W,1200W Area-array/4K Line scan |
| Dimensional detection accuracy | 0.15mm |
| Defect detection misjudgment rate | ≤0.5% |
| Electrode positioning and deviation correction accuracy | ≤±0.2mm |
| Stack single layer efficiency | ≤200ms |
| Composite AB surfaces alignment | ≤±0.5mm |
| Cell alignment CMK | ≥1.33 |
| GRR | ≤10% |
| NDC | ≥5% |
软件界面示意图
