CCD detection system for slitting machine
Overview
Application: CCD online detection system detects the surface defects on the intermittent coating electrode; system alarming and machine shutdown, with data statistics and labeling for the defectives, and etc. 1、 Detection content Electrode surface defect 2、Optional configuration Labeling, laser marking systems
Get a Quote →Details & Specs
Application: CCD online detection system detects the surface defects on the intermittent coating electrode; system alarming and machine shutdown, with data statistics and labeling for the defectives, and etc.
1、 Detection content
Electrode surface defect
2、Optional configuration
Labeling, laser marking systems

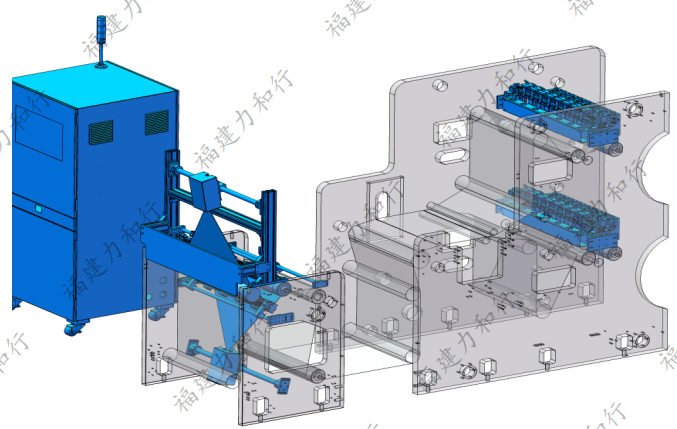

Product drawing:

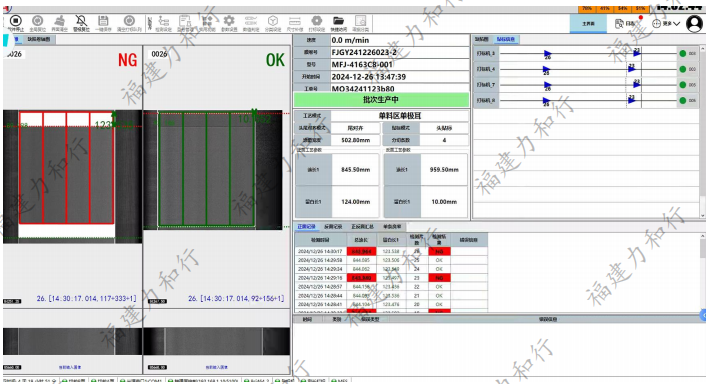

Slitting machine display image：
Technical parameter：
| Roll width | 750mm | 1500mm |
| Electrode width | MAX：700mm | MAX：1400mm |
| FOV of CCD | 750mm | 1450mm |
| Camera configuration | 2*8K | 4*16K |
| Coating process | Intermittent coating | |
| Detection speed | 100m/min | |
| Detection accuracy | 0.3mm*0.3mm | |
| Labeling accuracy | ±20mm | |
| Misjudgment rate | Detect rate≥99.9%, false rejection ≤0.1 % | |
| Undetected rate | 0 | |
