CCD detection system for Cylindrical cell appearance
Overview
Application: Coating alignment and defect detection system uses CCD to take real-time photos of the electrode for electrode width detection and real-time closed-loop correction, compatible with electrode surface defect detection; system will inkjet and alarm for the defects. 1、Detection Items： ①Electrode dimension detection ②Upper and down surfaces alignment detection ③Defect appearance detection ④ Closed-loop correc
Get a Quote →Details & Specs
Application: Coating alignment and defect detection system uses CCD to take real-time photos of the electrode for electrode width detection and real-time closed-loop correction, compatible with electrode surface defect detection; system will inkjet and alarm for the defects.
1、Detection Items：
①Electrode dimension detection
②Upper and down surfaces alignment detection
③Defect appearance detection
④ Closed-loop correction
⑤ Comparison of dry and wet films data
2、Optional configuration
①Correction control system
②Defect ink jet marking systems
③AI recognition
④Detection on the upper and down surfaces of the oven outlet

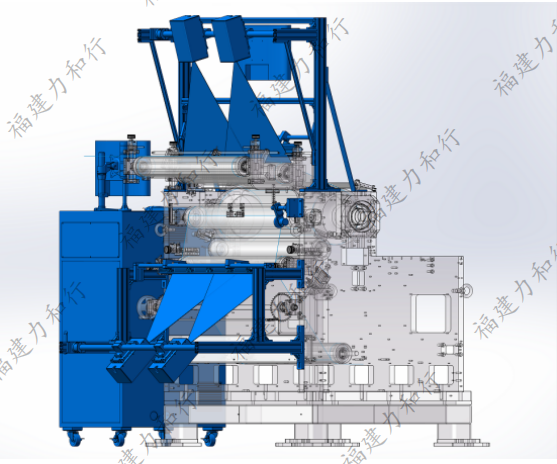

Product drawing：

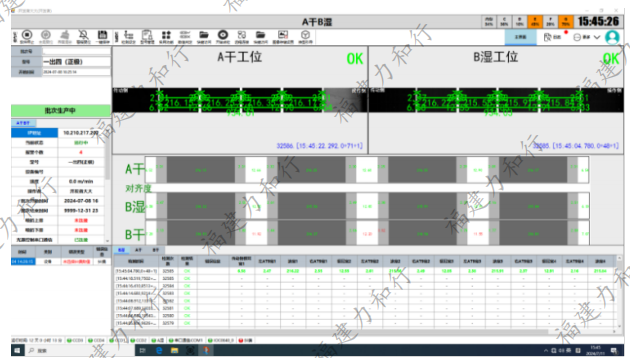

Single layer coating display image：
Technical parameter：
| Roll width | 750mm | 1000mm | 1300mm | 1600mm |
| Electrode width | MAX：700mm | MAX：900mmm | MAX：1200mm | MAX：1500mm |
| FOV of CCD | 750mm | 1000mm | 1300mm | 1600mm |
| Camera configuration | 2*16K | 4*16K | 4*16K | 4*16K |
| Coating process | Intermittent coating, continuous coating, stripe coating | |||
| Detection speed | 120m/min | |||
| Detection accuracy | ±0.1mm | |||
| Correction accuracy | ±0.3mm | |||
| Labeling accuracy | ±20mm | |||
| Ink jet accuracy | ±15mm | |||
| Laser marking accuracy | ±10mm | |||
| Misjudgment rate | Detect rate≥99.9%, false rejection ≤0.1 % | |||
| Undetected rate | 0 | |||
| GRR | ≤10% | |||
| NDC | ≥5% | |||
| CPK | ≥1.67 | |||
