CCD detection system for laser notching and slitting machine
Overview
Application: Dimension and defect CCD detection system, applied on laser notching and slitting machine, uses CCD to take real-time photos of the electrode for electrode width detection and real-time closed-loop correction, compatible with surface defect detection; system alarming and labelling for the defective electrodes to realize automatic detection. 1、Detection Items： ①Tab dimension detection ②Closed-loop correct
Get a Quote →Details & Specs
Application: Dimension and defect CCD detection system, applied on laser notching and slitting machine, uses CCD to take real-time photos of the electrode for electrode width detection and real-time closed-loop correction, compatible with surface defect detection; system alarming and labelling for the defective electrodes to realize automatic detection.
1、Detection Items：
①Tab dimension detection
②Closed-loop correction
③Electrode surface defect
2、Optional configuration
① Correction control system
② Defect labeling systems

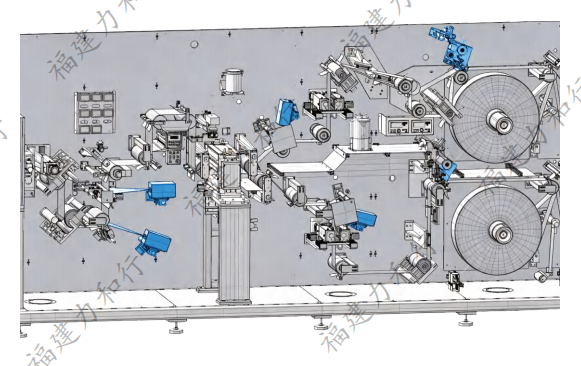

Product drawing：

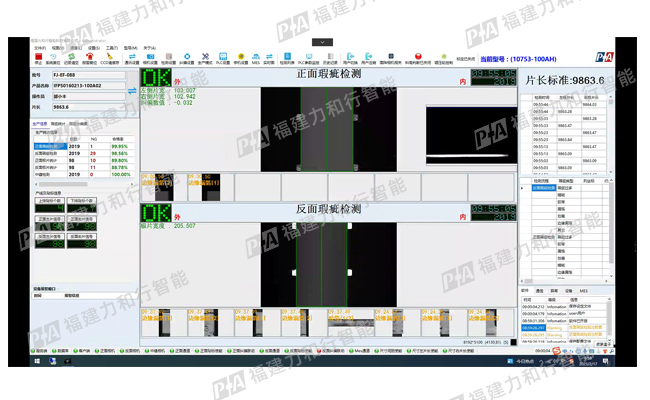

laser notching and slitting machine display image：
Technical parameter：
| Roll width | 550mm | 650mm |
| Electrode width | MAX：500mm | MAX：600mm |
| FOV of CCD | 550mm | 650mm |
| Camera configuration | 2*8K+2*4K | 2*16K+2*8K |
| Coating process | Continuous coating | |
| Detection speed | 120m/min | |
| Detection accuracy | Defect:0.3mm*0.3mm Dimension:±0.15mm | Defect:0.3mm*0.3mm Dimension:±0.1mm |
| Correction accuracy | ±0.3mm | |
| Misjudgment rate | Detect rate≥99.9%, false rejection ≤0.1 % | |
| Undetected rate | 0 | |
