CCD detection system for calendering and slitting machine
Overview
Application: CCD online detection system is applied for the surface defects detection on continuous coating electrode, electrode width detection and width closed-loop correction; system alarming and machine shutdown, with data statistics and labeling for the defectives. 1、Detection Items： ①Electrode dimension detection ②Closed-loop correction ③Electrode surface defect 2、Optional configuration ①Correction control syst
Get a Quote →Details & Specs
Application: CCD online detection system is applied for the surface defects detection on continuous coating electrode, electrode width detection and width closed-loop correction; system alarming and machine shutdown, with data statistics and labeling for the defectives.
1、Detection Items：
①Electrode dimension detection
②Closed-loop correction
③Electrode surface defect
2、Optional configuration
①Correction control system
②Defect ink jet, labeling, laser marking systems

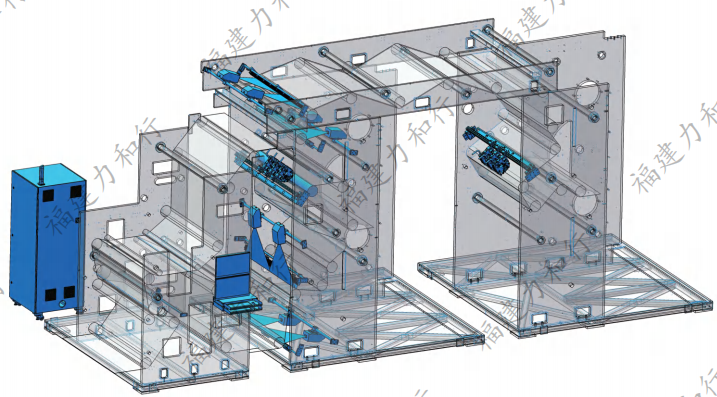

Product drawing：

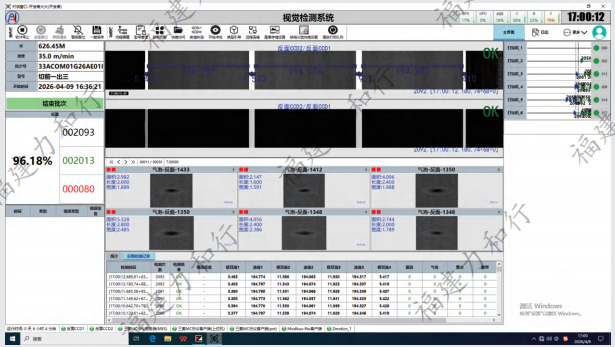

calendering and slitting machine display image：
Technical parameter：
| Roll width | 750mm | 1000mm | 1300mm | 1600mm |
| Electrode width | MAX：700mm | MAX：900mm | MAX：1200mm | MAX：1500mm |
| FOV of CCD | 750mm | 1000mm | 1300mm | 1600mm |
| Camera configuration | 2*16K | 4*16K | 4*16K | 4*16K |
| Coating process | Stripe coating | |||
| Detection speed | 120m/min | |||
| Detection accuracy | Defect:0.3mm*0.3mm,Dimension:±0.1mm | |||
| Correction accuracy | ±0.3mm | |||
| Labeling accuracy | ±20mm | |||
| Ink jet accuracy | ±15mm | |||
| Laser marking accuracy | ±10mm | |||
| Misjudgment rate | Detect rate≥99.9%, false rejection ≤0.1 % | |||
| Undetected rate | 0 | |||
| GRR | ≤10% | |||
| NDC | ≥5% | |||
| CPK | ≥1.67 | |||
