CCD detection system for hardware die cutting machine
Overview
Application: Dimension and defect CCD detection system for hardware die cutting machine, uses CCD to take real-time photos of the electrode for electrode width detection and compatible with surface defect detection; system alarming for the defective electrodes and doing rejection to realize automatic detection. Detection Items： ①Tab dimension detection ②Electrode surface defect
Get a Quote →Details & Specs
Application: Dimension and defect CCD detection system for hardware die cutting machine, uses CCD to take real-time photos of the electrode for electrode width detection and compatible with surface defect detection; system alarming for the defective electrodes and doing rejection to realize automatic detection.
Detection Items：
①Tab dimension detection
②Electrode surface defect

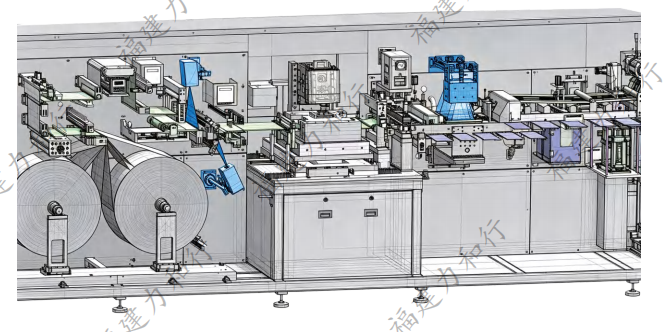

Product drawing：

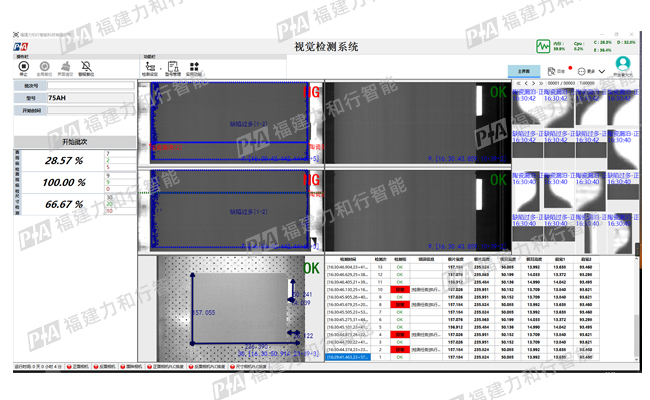

Hardware die cutting machine display image：
Technical parameter：
| Roll width | 450mm |
| Electrode width | MAX：400mm |
| FOV of CCD | 450mm |
| Camera configuration | 2个 8K+2个 890W |
| Coating process | Continuous coating |
| Detection efficiency | ≥240PPM |
| Detection accuracy | Defect:0.3mm*0.3mm,Dimension:±0.1mm |
| Misjudgment rate | Detect rate≥99.9%, false rejection ≤0.1 % |
| Undetected rate | 0 |
