CCD detection system for prismatic aluminum cell case appearance
Overview
Application: CCD inspection system is applied in the inspection machine for prismatic aluminum cell case to realize the appearance inspection of blue film/no-blue film prismatic aluminum case batteries. The detection area includes 5 flat surfaces, 1 surface where the battery pole is located, a total of 6 sides; 4 edges in the vertical direction, 4 edges in the bottom, a total of 8 edges, and realizing automatic sorti
Get a Quote →Details & Specs
Application: CCD inspection system is applied in the inspection machine for prismatic aluminum cell case to realize the appearance inspection of blue film/no-blue film prismatic aluminum case batteries. The detection area includes 5 flat surfaces, 1 surface where the battery pole is located, a total of 6 sides; 4 edges in the vertical direction, 4 edges in the bottom, a total of 8 edges, and realizing automatic sorting.
Detection Items：
Prismatic aluminum case battery

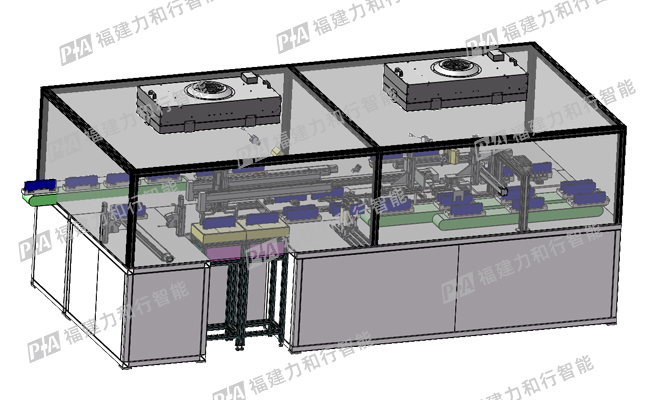

Product drawing：

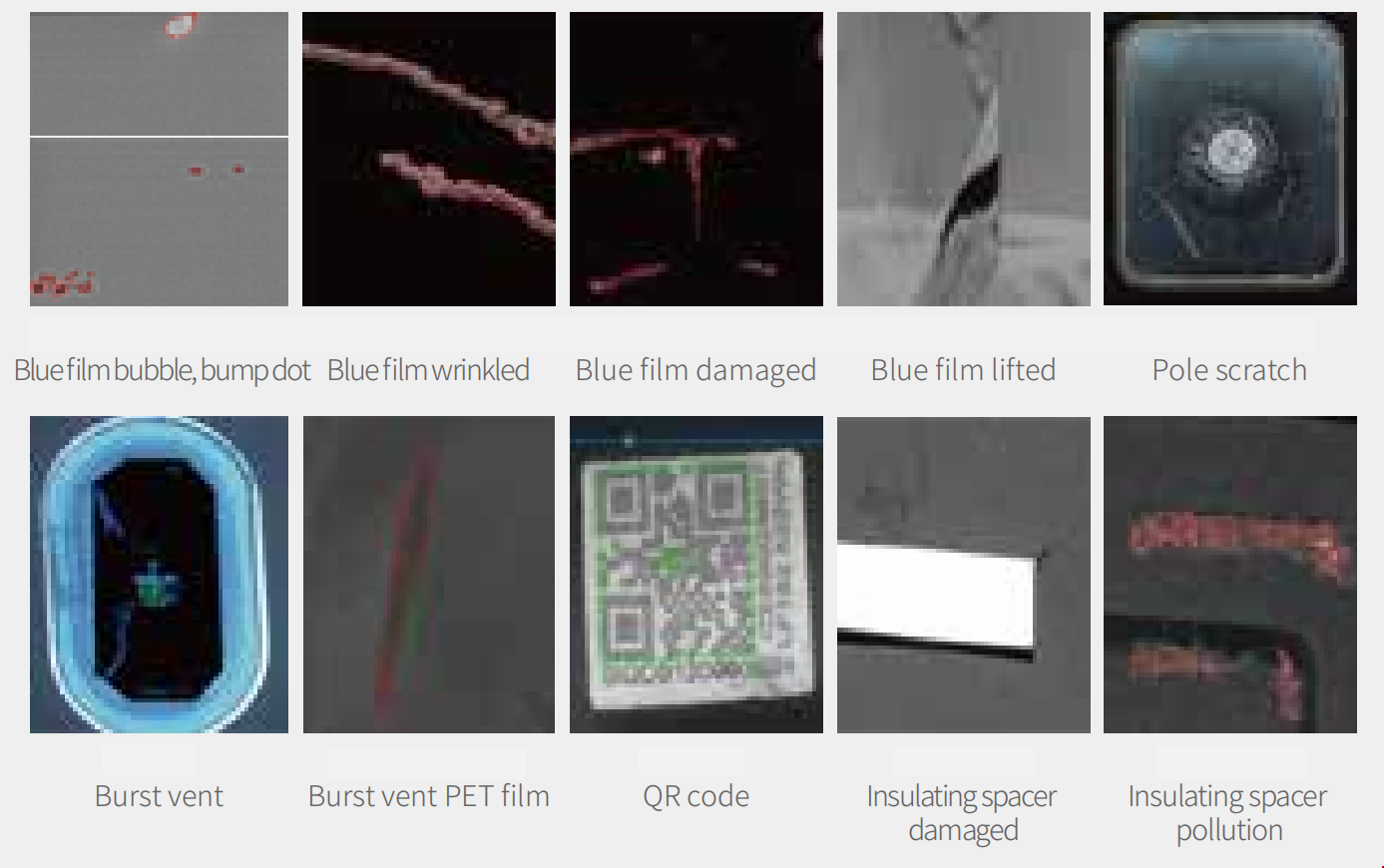

Partial detection instance ：
Technical parameter：
| Detection speed | 12ppm |
| Camera | Line scan/Area-array/3D Line Laser |
| Detection accuracy | Length＞0.1mm，Width＞0.1mm |
| Algorithm collocation | Ordinary algorithm + deep learning (AI algorithm) |
| Misjudgment rate | Detection rate≥99.9%, false rejection≤0.1 % |
